Vertical Hot Water Vessels

Widely used for bulk water supply to hospitals, apartment blocks, hotels, hostels, change houses as well as domestic applications.

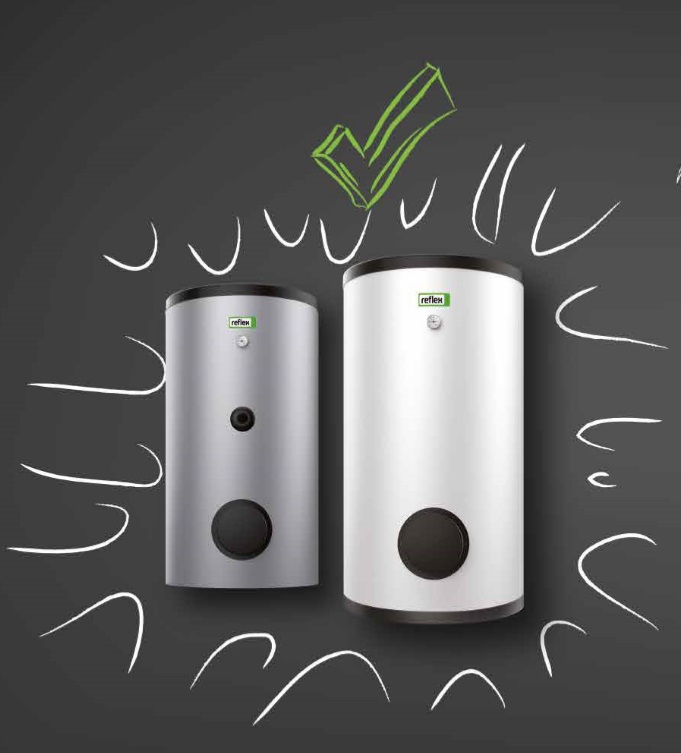

Ask about our German Made - Ready To Install 4ss EcoFlex tanks

 recoflex tank 1000lt    Vertical Hot Water Tank and Calorifiers and Boilers

*** click HERE to get a quote ***



  • Manufactured generally  in accordance with ASME VIII Code of Practice, from mild steel or stainless steel. Certification of vessels by a Third Party Test Authority can be done on request.
  • All mild steel vessels are offered standard with a Sigmarite internal protective lining, or with Phenoline 1205 or Polyglass VEF as a protective lining for aggressive water areas. Galvanized vessels are also available on request.
  • All vessels are manufactured as standard for 400kPa pressure, with higher or lower pressures available on request.
  • All units come standard with a Temperature and Pressure Safety valve.
  • The water heaters are supplied standard with Incalloy immersion elements.
  • Dual thermostats, and differential controllers fitted where required.
  • Water heaters are insulated with 50mm thick IW24 fibre wool and are clad with 0.6mm galvanized sheet metal. Stainless steel and Aluminium cladding are also available on request.
  • Control Panels in IP54 protection enclosures installed as standard, pre  wired to the elements, or  available on wall mounting brackets


Name

Dimensions

STD Electrical Loading

Capacity

Mass (KG)

4S-450V

710x1680

6Kw

450 ℓ

110

4S-500V

710X1790

6Kw

500 ℓ

125

4S-600V

862x1680

6Kw

600 ℓ

150

4S-700V

862x1820

9Kw

700 ℓ

170

4S-800V

862x1850

9Kw

800 ℓ

180

4S-1000V

1020x1610

12Kw

1000 ℓ

250

4S-1200V

1020x1910

12Kw

1200 ℓ

275

4S-1400V

1020x2210

18Kw

1400 ℓ

320

4S-1500V

1170x1790

18Kw

1500 ℓ

340

4S-1600V

1170x1900

18Kw

1600 ℓ

360

4S-1800V

1170x2130

24Kw

1800 ℓ

400

4S-2000V

1320x1850

24Kw

2000 ℓ

450

4S-2300V

1320x2110

27Kw

2300 ℓ

500

4S-2500V

1320x2280

27Kw

2500 ℓ

580

4S-2700V

1320x2450

27Kw

2500 ℓ

580

4S-3000V

1320x2710

36Kw

3000 ℓ

700

4S-3600V

1400x2570

48Kw

3600 ℓ

760

4S-4000V

1400x2870

48Kw

4000 ℓ

880

4S-4500V

1450x2910

48Kw

4500 ℓ

940

4S-5000V

1450x3210

60Kw

5000 ℓ

980

4S-6000V

1600x3170

60Kw

6000 ℓ

1050

4S-7500V

1800x3160

72Kw

7500 ℓ

1250

4S-10000V

2100x3140

96Kw

10000 ℓ

1500

4S-12000V

2200x3410

108Kw

12000 ℓ

1650

4S-15000V

2300x3890

144Kw

15000 ℓ

2000

4S-20000V

2400x4700

180Kw

20000 ℓ

2400

*** click HERE to get a quote ***

Custom tanks available on request, just provide us with capacity and requirements.

Steam Calorifiers also available, in the same sizes and capacities, heating coils also included.
