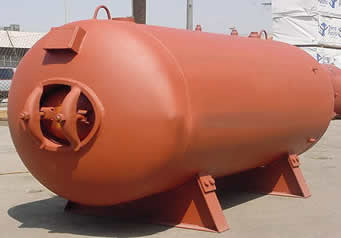

Horizontal Hot Water Vessels
Widely used for bulk water supply to hospitals, apartment blocks, hotels, hostels, change houses as well as domestic applications.

- Manufactured generally in accordance with ASME VIII Code of Practice, from mild steel or stainless steel. Certification of vessels by a Third Party Test Authority can be done on request.
- All mild steel vessels are offered standard with a Sigmarite internal protective lining, or with Phenoline 1205 or Polyglass VEF as a protective lining for aggressive water areas. Galvanized vessels are also available on request.
- All vessels are manufactured as standard for 400kPa pressure, with higher or lower pressures available on request.
- All units come standard with a Temperature and Pressure Safety valve.
- The water heaters are supplied standard with Incalloy immersion elements.
- Dual thermostats, and differential controllers fitted where required.
- Water heaters are insulated with 50mm thick IW24 fibre wool and are clad with 0.6mm galvanized sheet metal. Stainless steel and Aluminium cladding are also available on request.
- Control Panels in IP54 protection enclosures installed as standard, pre wired to the elements, or available on wall mounting brackets
|
Name |
Dimensions |
STD Electrical Loading |
Capacity |
Mass (KG) |
4S-450 |
710x1680 |
6Kw |
450 ℓ |
110 |
4S-500 |
710X1790 |
6Kw |
500 ℓ |
125 |
4S-600 |
862x1680 |
6Kw |
600 ℓ |
150 |
4S-700 |
862x1820 |
9Kw |
700 ℓ |
170 |
4S-800 |
862x1850 |
9Kw |
800 ℓ |
180 |
4S-1000 |
1020x1610 |
12Kw |
1000 ℓ |
250 |
4S-1200 |
1020x1910 |
12Kw |
1200 ℓ |
275 |
4S-1400 |
1020x2210 |
18Kw |
1400 ℓ |
320 |
4S-1500 |
1170x1790 |
18Kw |
1500 ℓ |
340 |
4S-1600 |
1170x1900 |
18Kw |
1600 ℓ |
360 |
4S-1800 |
1170x2130 |
24Kw |
1800 ℓ |
400 |
4S-2000 |
1320x1850 |
24Kw |
2000 ℓ |
450 |
4S-2300 |
1320x2110 |
27Kw |
2300 ℓ |
500 |
4S-2500 |
1320x2280 |
27Kw |
2500 ℓ |
580 |
4S-2700 |
1320x2450 |
27Kw |
2500 ℓ |
580 |
4S-3000 |
1320x2710 |
36Kw |
3000 ℓ |
700 |
4S-3600 |
1400x2570 |
48Kw |
3600 ℓ |
760 |
4S-4000 |
1400x2870 |
48Kw |
4000 ℓ |
880 |
4S-4500 |
1450x2910 |
48Kw |
4500 ℓ |
940 |
4S-5000 |
1450x3210 |
60Kw |
5000 ℓ |
980 |
4S-6000 |
1600x3170 |
60Kw |
6000 ℓ |
1050 |
4S-7500 |
1800x3160 |
72Kw |
7500 ℓ |
1250 |
4S-10000 |
2100x3140 |
96Kw |
10000 ℓ |
1500 |
4S-12000 |
2200x3410 |
108Kw |
12000 ℓ |
1650 |
4S-15000 |
2300x3890 |
144Kw |
15000 ℓ |
2000 |
4S-20000 |
2400x4700 |
180Kw |
20000 ℓ |
2400 |
|
Custom tanks available on request, just provide us with capacity and requirements.
Steam Calorifiers also available, in the same sizes and capacities, heating coils also included.
|
|
